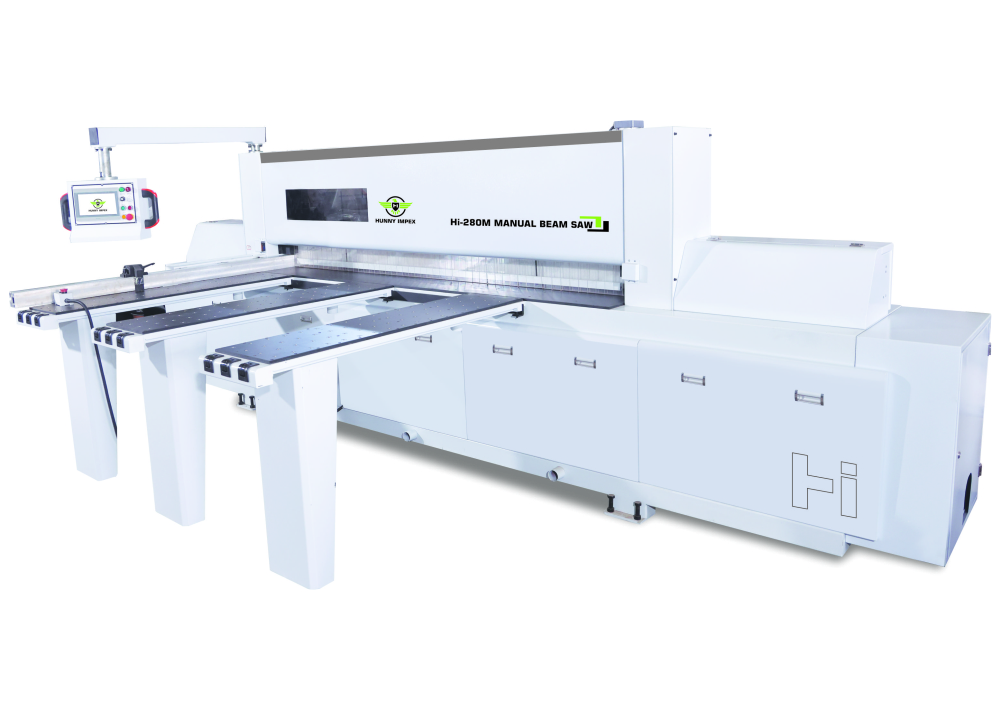

Hi-280 M High Speed Manual Beam Saw
| Specification | Hi – 280M |
|---|---|
| Dimension Of Board | 2750mm x 2750mm |
| Speed of Cutting | 100m / min |
| Diameter of main saw blade | 350mm |
| Main spindle diameter | 30mm |
| Speed of main saw spindle | 48 R.P.M |
| Diameter of scoring saw blade | 180mm |
| Scoring saw spindle diameter | 25.4 |
| Speed of scoring saw spindle | 6100 R.P.M |
| Max Cutting Height | 85mm |
| Working air pressure | 0.6 – 0.7 mpa |
| Total Motor power | 15 Kw |
| Voltage | 415v |
| Weight | 2600kg |
| Dimension | 4900 x 3800 x 1800 mm |
